使用Three.js讓貓跑起來!

我在 Next.js 15 中使用 Three.js 放入3D模型,還有遇到的兩個坑。

工具選擇

如果想再 Next.Js 或 React 中放入 3D 模型,在網路上搜尋的話大部分的人會使用 React-three-fiberReact-three-drei 這兩個工具庫,

React-three-fiber 是一個 React 渲染器,將 Three.js 的功能整合到 React 中,並以聲明式的方式編寫 3D 圖形,而不是傳統的 Three.js 程式式代碼。

React-three-drei 是基於 React-three-fiber 的一組擴展和工具集,它封裝了常用的 Three.js 功能和組件,減少了重複代碼,並提供了更高級的功能,例如鏡頭控制、加載器、3D 字體等。

第一個坑 版本問題

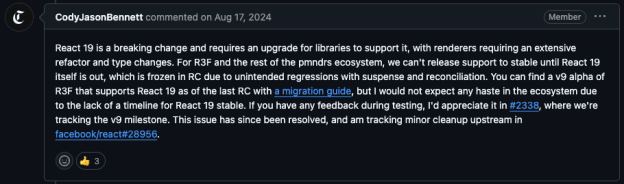

React-three-fiber 版本問題

這邊簡單說就是,React 19 是重大更新,目前還在測試階段(RC),需要大幅修改庫和渲染器才能支持,包括 R3F 在內的工具還沒法提供穩定支持。 不過,可以試用支持 React 19 的 R3F v9 alpha 版本。

這邊就有兩個選擇

  1. 使用 R3F v9 alpha 版本:但這個不確定性很高,可能會有更多坑。
  2. 把 React 版本降到 18:但是這個專案使用的是 Next.js 15 ,如果要改的話可能需要更多配置,還是有可能會有更多坑。

花了半天研究,最後決定直接使用 Three.js ,反正以前也用過,就當作是複習。

程式碼架構

目前要實現的目標,就是把 Three.js 包裝成一個元件,達到復用的效果。

最終要達到的效果是下面這樣:

const Cat = () => {
  //設定初始參數
  const initSetting = {
    modelPath: '/cat.glb',
    meshColor: theme === 'dark' ? darkMeshColor : lightMeshColor,
  };
  // 建立一個 ref 來存儲 MyThree 元件的引用
  const catModelRef = useRef<threeRef>(null);
  return <MyThree ref={catModelRef} initSetting={initSetting} />;
};

只要設定參數,就可以使用 MyThree 元件,並且使用 useRef 儲存的引用來動態修改模型。

主要的架構是 MyThree 元件使用 forwardRef 搭配 useImperativeHandle 函數將 MyThree 元件的引用暴露出來。

這個元件只要設置初始參數,把初始化的和卸載時的清理的工作交給 MyThree 元件,並且可以使用 useRef 儲存的引用來動態修改模型。

const MyThree = forwardRef<threeRef, MyThreeProps>(
  ({ className, initSetting }, ref) => {
    // 設定元件的 displayName,方便在 DevTools 中識別
    MyThree.displayName = 'MyThree';
    // 用於掛載 Three.js 場景的 DOM 節點
    const mountRef = useRef<HTMLDivElement | null>(null);
    // 用於儲存 Three.js 的核心場景物件
    const sceneRef = useRef<threeRef>({
      scene: null,
      camera: null,
      renderer: null,
      controls: null,
      mixer: null,
      clock: null,
      meshArray: [],
      animationLoopRunning: false,
      model: null,
      initSetting,
    });
    // 使用 useImperativeHandle 暴露給父組件的功能 (Ref API)
    useImperativeHandle<threeRef, threeRef>(ref, () => sceneRef.current);

執行 Three.js 需要的東西有以下五個:

  • 場景
  • 鏡頭
  • 模型
  • 光源
  • 渲染器

初始化函數

這邊我使用一個函數將上述五個一起初始化,並儲存引用供外部使用。

// 初始化three函數
export const initThree = (
  sceneRef: RefObject<threeRef>,
  mountRef: RefObject<HTMLDivElement | null>
) => {
  if (!sceneRef.current) return; // 若 sceneRef 不存在則退出

  // 初始化場景、相機與渲染器
  const scene = new THREE.Scene();
  const camera = new THREE.PerspectiveCamera(75, 1, 0.1, 1000);
  camera.position.z = 5; // 設置相機的初始位置

  const renderer = new THREE.WebGLRenderer({ alpha: true, antialias: true });
  renderer.setPixelRatio(window.devicePixelRatio || 1); // 設置像素比以優化畫質

  // 設置軌道控制器
  const controls = new OrbitControls(camera, renderer.domElement);
  Object.assign(controls, {
    enableDamping: true, // 啟用阻尼效果,使操作更平滑
    dampingFactor: 0.05, // 設定阻尼系數
    enableZoom: false, // 禁用縮放功能
    maxPolarAngle: Math.PI / 2, // 限制垂直視角的最大角度
    minPolarAngle: Math.PI / 2, // 限制垂直視角的最小角度
    autoRotate: true, // 啟用自動旋轉
    autoRotateSpeed: 0.5, // 設定自動旋轉速度
  });

  // 將渲染器的 DOM 元素添加到指定的掛載容器中
  mountRef.current?.appendChild(renderer.domElement);

  // 將初始化的對象存入 sceneRef 供外部使用
  Object.assign(sceneRef.current, {
    scene,
    camera,
    renderer,
    controls,
    clock: new THREE.Clock(), // 添加一個時鐘對象,用於動畫計時
  });

  // 設置渲染器的尺寸以適配容器大小
  setRendererSize(sceneRef);
};

這邊要注意的是要設置 renderer.setPixelRatio 函數來設置像素比,不然我在手機上看模型會很模糊。

加載模型函數

: 接下來是加載模型的函數:

// 加載模型
export const loadModel = (sceneRef: RefObject<threeRef>) => {
  const loader = new GLTFLoader();
  const modelPath = sceneRef.current?.initSetting?.modelPath;

  if (!modelPath) return; // 若未設置模型路徑則退出

  loader.load(
    modelPath, // 模型文件路徑
    (gltf) => {
      // 遍歷模型的所有子節點
      gltf.scene.traverse((child) => {
        if (child instanceof THREE.Mesh) {
          const material = child.material;
          child.material = material; // 設置材質
          child.material.emissive = child.material.color; // 添加自發光顏色
          child.material.emissiveMap = child.material.map; // 添加自發光貼圖
          child.material.color.set(sceneRef.current?.initSetting?.meshColor); // 設置網格顏色
          child.material.wireframe = true; // 啟用線框模式
          sceneRef.current?.meshArray.push(child); // 添加到網格陣列
        }
      });

      const model = gltf.scene;
      model.scale.set(0.08, 0.133, 0.08); // 設置模型縮放比例
      model.position.set(0, -2, 0); // 設置模型位置
      sceneRef.current!.model = model; // 儲存模型到 sceneRef
      sceneRef.current!.scene?.add(model); // 添加模型到場景

      // 若模型包含動畫,初始化動畫混合器並播放
      if (gltf.animations.length > 0) {
        const mixer = new THREE.AnimationMixer(model);
        sceneRef.current!.mixer = mixer;
        gltf.animations.forEach((clip) => mixer.clipAction(clip).play());
      }
    },
    undefined,
    (error) => console.error('模型加載錯誤:', error) // 處理加載失敗
  );
};

initSetting 裡有一個參數 isWireframe,這個參數是用來控制是否顯示網格,因為只有網格的模型很酷所以有了這個設定。

添加光源

export const addLight = (sceneRef: RefObject<threeRef>) => {
  const ambientLight = new THREE.AmbientLight(0xffffff, 1.5);
  sceneRef.current?.scene?.add(ambientLight);

  const directionalLight = new THREE.DirectionalLight(0xffffff, 2);
  directionalLight.position.set(10, 10, 10);
  sceneRef.current?.scene?.add(directionalLight);
};

這邊先固定設定,之後要改成由初始設定。

動畫函數

// 動畫函數
export const animate = (sceneRef: RefObject<threeRef>) => {
  // 若 sceneRef 不存在或動畫迴圈未啟用則退出
  if (!sceneRef.current || !sceneRef.current.animationLoopRunning) return;

  const render = () => {
    if (!sceneRef.current?.animationLoopRunning) return; // 確保動畫迴圈仍在運行

    const { scene, camera, renderer, controls, mixer, clock } =
      sceneRef.current;

    // 更新動畫與控制器
    const delta = clock.getDelta(); // 計算自上一幀的時間差
    mixer?.update(delta); // 更新動畫混合器
    controls?.update(); // 更新軌道控制器

    // 渲染場景
    if (scene && camera) renderer?.render(scene, camera);

    // 遞迴調用下一幀
    requestAnimationFrame(render);
  };

  render(); // 啟動渲染
};

動畫函數這邊如果 sceneRef.current.animationLoopRunning 為 false 的話,會暫停動畫,想要恢復動畫的話需要重新執行 animate 函數。

處理可見性 節省資源

這邊有一個處理可見性的函數,當頁面可見時,恢復動畫,當頁面不可見時,暫停動畫,以節省資源。

export const handleVisibilityChange = (sceneRef: RefObject<threeRef>) => {
  if (document.visibilityState === 'visible') {
    sceneRef.current.animationLoopRunning = true; // 恢復動畫
    animate(sceneRef); // 重新啟動動畫
  } else {
    sceneRef.current.renderer?.setAnimationLoop(null); // 暫停渲染
  }
};

這個是清理函數,在元件卸載時會執行,清理資源並重置狀態。

export const clearThree = (
  sceneRef: RefObject<threeRef>,
  mountRef: RefObject<HTMLDivElement | null>
) => {
  if (!sceneRef.current) return;
  const { renderer, controls, scene } = sceneRef.current;

  if (renderer && renderer.domElement) {
    mountRef.current?.removeChild(renderer.domElement); // 移除渲染器
    renderer.dispose(); // 销毁渲染器
  }

  controls?.dispose(); // 销毁 OrbitControls

  scene?.traverse((object) => {
    if (object instanceof THREE.Mesh) {
      object.geometry.dispose();
      if (object.material instanceof THREE.Material) {
        object.material.dispose();
      }
    }
  });

  // 清空引用
  Object.assign(sceneRef.current, {
    scene: null,
    camera: null,
    renderer: null,
    controls: null,
    mixer: null,
    meshArray: [],
    animationLoopRunning: false,
  });
};

頁面初始化

頁面出初始化基本上就是把每個函數執行一遍,並且註冊事件監聽器。

useEffect(() => {
  // 初始化場景與模型
  initThree(sceneRef, mountRef);
  loadModel(sceneRef);

  // 啟動動畫迴圈
  sceneRef.current.animationLoopRunning = true;
  animate(sceneRef);

  // 頁面可見性與視窗大小變化處理
  const handleVisibility = () => handleVisibilityChange(sceneRef);
  const handleResize = () => {
    if (sceneRef.current.camera && sceneRef.current.renderer) {
      setRendererSize(sceneRef);
      setModelSize(sceneRef);
    }
  };

  // 註冊事件監聽器
  document.addEventListener('visibilitychange', handleVisibility);
  window.addEventListener('resize', handleResize);

  // 清理函數
  return () => {
    document.removeEventListener('visibilitychange', handleVisibility);
    window.removeEventListener('resize', handleResize);
    clearThree(sceneRef, mountRef); // 清理資源並重置狀態
  };
}, []);

差不多這樣就完成了,之後可能還要研究一下初始化的參數,讓元件更靈活,下面是使用範例:

const Example = () => {
  // 初始化設定
  const initSetting = {
    modelPath: '/cat.glb',
    meshColor: theme === 'dark' ? darkMeshColor : lightMeshColor,
    isAnimation: true,
    isWireframe: true,
    modelScale: { x: 0.08, y: 0.133, z: 0.08 },
    modelPosition: { x: 0, y: -2, z: 0 },
  };
  // 建立引用以操作 MyThree
  const catModelRef = useMyThreeRef();

  return <MyThree ref={catModelRef} initSetting={initSetting} />; // 渲染 MyThree 元件
};
export default Example;

只要短短的幾行程式碼,就可以使用 MyThree 元件,並且使用 useRef 儲存的引用來動態修改模型。

下面是動態修改模型的範例:

參數說明

下面是這個元件的 initSetting 物件參數說明:

參數類型預設值說明
isWireframebooleanfalse是否顯示網格
modelScale { x: number; y: number; z: number }{ x: 1, y: 1, z: 1 }模型縮放比例
modelPosition{ x: number; y: number; z: number }{ x: 0, y: 0, z: 0 }模型位置
isAnimationbooleantrue是否開啟動畫
setRendererSize(width: number, renderer: THREE.WebGLRenderer) => void(() => {})一開始會先執行一次用來設定尺寸。元件會綁定”resize“事件,當視窗變化時點用這個函數。
cameraPosition{ x: number; y: number; z: number }{ x: 1, y: 1, z: 1 }相機初始位置
isAutoRotatebooleanfalse是否啟用自旋轉
autoRotateSpeednumber0自動旋轉速度

之後可能還會在更新增加更多參數。

第二個坑 Next.js 的嚴格模式

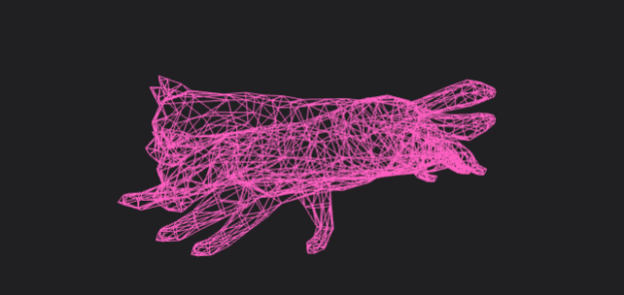

Next.js 的嚴格模式下的重複載入

在 Next.js 和 React 的嚴格模式下,開發環境會執行雙重初始化/移除的動作,這會導致模型的重複載入,問題已解決,有空的時候會在更新。
